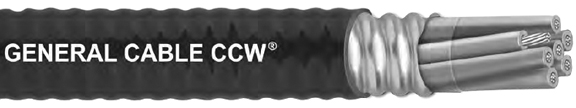

CCW MC-HL MC-HL-VFD

(Results: 22 Found; Refine your results by making selections from the menu)



CCW armored Control cables offer an economical, rugged and reliable ernative to labor-intensive cable in conduit wiring methods.

Applications:
For use in Class I, II and III, Divisions 1 and 2; and Class I, Zones 1 and 2 hazardous locations per NEC Articles 501, 502, 503 and 505 - For use as services, feeders and branch circuits for power, lighting, control, and signal circuits in accordance with NEC Articles 330 and 725 - Installed indoors or outdoors, wet or dry locations, directly buried, embedded in concrete, in a raceway, as aerial cable on a messenger, in cable trays, or as exposed runs secured to supports in accordance with NEC Article 330 - Recognized for use on fixed or floating offshore petroleum facilities as recommended by the American Petroleum Institute.

Shop all armored cable products online today!

Features:

CCW armored cable wiring provides an impervious barrier to moisture, gas and liquids - CCW armor provides EMI shielding performance - Factory assembled and tested cable for use as an ernative to cable in conduit wiring systems - Meets cold impact at -40-Degree C - 90-Degree C continuous operating temperature, wet or dry - 130-Degree C emergency rating - 250-Degree C short circuit rating

Industry Approvals:
UL Type MC-HL, XHHW-2, SUN RES, CT USE, DIR BUR, -40°C, UL File # E69797 - UL Listed Marine Shipboard, UL File # E85994 - American Bureau of Shipping (ABS) Listed for CWCMC - CSA Certified Type RA90, XLPE, HL, SR, FT4, and -40°C, CSA File # 7319

  • 104CCCWAR-01 - 10 AWG 4C w/GND Continuous Corrugated Weld Armored Cable MC-HL - - 600V - Black - Cut to Length
    10-4 Continuous Corrugated Armor 90?C - 600 Volt UL Type MC-HL Armored Cable - Black
  • 124CCCWAR-01 - 12 AWG 4C w/GND Continuous Corrugated Weld Armored Cable MC-HL - 90C - 600V - Black - Cut to Length
    12-4 Continuous Corrugated Armor 90?C - 600 Volt UL Type MC-HL Armored Cable - Black
  • 127CCCWAR-01 - 12 AWG 7C w/GND Continuous Corrugated Weld Armored Cable MC-HL - 90C - 600V - Black - Cut to Length
    12-7 Continuous Corrugated Armor 90?C - 600 Volt UL Type MC-HL Armored Cable - Black
  • X11212 - #12/12C XLP/PVC HL CCA MC W/1G
    12-12 Continuous Corrugated Armor 90?C - 600 Volt UL Type MC-HL Armored Cable - Black
  • 144CCCWAR-01 - 14 AWG 4C w/GND Continuous Corrugated Weld Armored Cable MC-HL - 90C - 600V - Black - Cut to Length
    14-4 Continuous Corrugated Armor 90?C - 600 Volt UL Type MC-HL Armored Cable - Black
  • 145CCCWAR-01 - 14 AWG 5C w/GND Continuous Corrugated Weld Armored Cable MC-HL - 90C - 600V - Black - Cut to Length
    14-5 Continuous Corrugated Armor 90?C - 600 Volt UL Type MC-HL Armored Cable - Black
  • 149CCCWAR-01 - 14 AWG 9C w/GND Continuous Corrugated Weld Armored Cable MC-HL - 90C - 600V - Black - Cut to Length
    14-9 Continuous Corrugated Armor 90?C - 600 Volt UL Type MC-HL Armored Cable - Black
  • X11412 - #14/12C XLP/PVC HL CCA MC W/1G
    14-12 Continuous Corrugated Armor 90?C - 600 Volt UL Type MC-HL Armored Cable - Black
  • X20203 - 2 AWG 3C Armored Cable Continuous Corrugated Weld Annealed Bare Copper Non-Shielded MC-HL VFD 600V - Black
    2 AWG 3C 7 Stranded Annealed Bare Copper Conductor - Non-Shielded Shielding - Continuous Corrugated Weld Armored Cable - Cross Linked Polyethylene Insulation PVC Jacket MC-HL VFD - 600V - Industrial Cable for - Black
  • 43CCCWVFDAR-01 - 4 AWG 3C Armored Cable Continuous Corrugated Weld Annealed Bare Copper Non-Shielded MC-HL VFD 600V - Black
    4 AWG 3C 7 Stranded Annealed Bare Copper Conductor - Non-Shielded Shielding - Continuous Corrugated Weld Armored Cable - Cross Linked Polyethylene Insulation PVC Jacket MC-HL VFD - 600V - Industrial Cable for - Black
  • X20603 - #6/3C W/GS XLP/PVC CCA VFD HL
    6-3 Continuous Corrugated Armor 90?C - 600 Volt - VFD Rated UL Type MC-HL - w/Ground Armored Cable - Black
  • X20803 - #8/3C W/GS XLP/PVC CCA VFD HL
    8-3 Continuous Corrugated Armor 90?C - 600 Volt - VFD Rated UL Type MC-HL - w/Ground Armored Cable - Black
  • X21/003 - 1/0-3C W/GS XLP/PVC CCA VFD HL
    1/0-3 Continuous Corrugated Armor 90?C - 600 Volt - VFD Rated UL Type MC-HL - w/Ground Armored Cable - Black
  • X21003 - #10/3C W/GS XLP/PVC CCA VFD HL
    10-3 Continuous Corrugated Armor 90?C - 600 Volt - VFD Rated UL Type MC-HL - w/Ground Armored Cable - Black
  • X21203 - 12 AWG 3C Armored Cable Continuous Corrugated Weld Annealed Bare Copper Non-Shielded MC-HL VFD 600V - Black
    This annealed bar copper wire is a non shielded choice for an Okonite VFD cable. Make One Stop Buy your electrical superstore for all Okonite Tray Cables!
